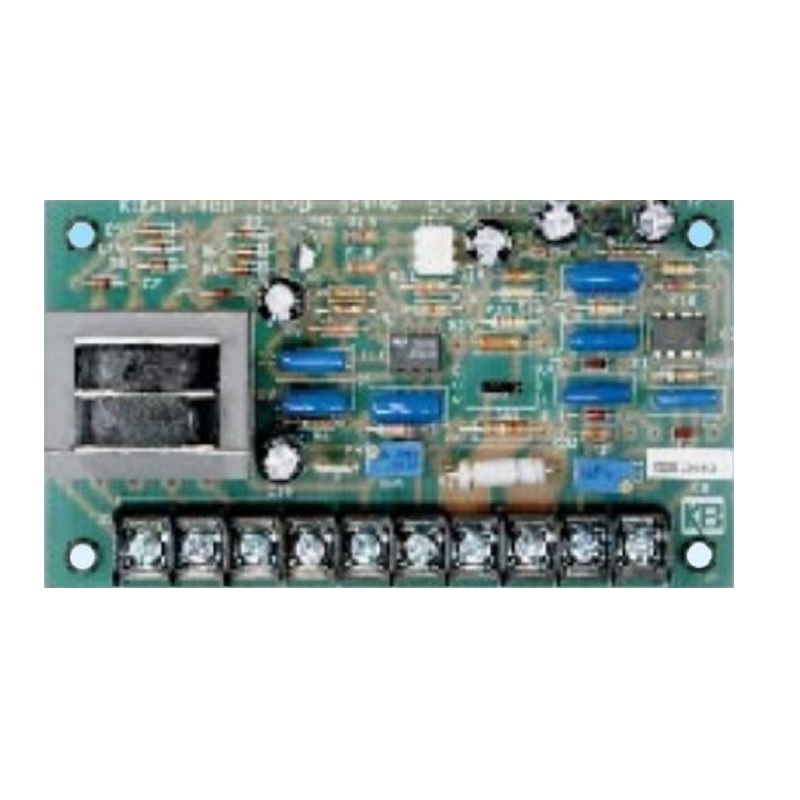

9431 KBSI-240D Signal Isolator, Stand Alone

KB ELECTRONICS

9431

KBSI-240D

Signal Isolator, Stand Alone

The unit is versatile, since a single model accepts a wide range of voltage (0-25, 0-120 and 0-550VDC) and current (1-5, 4-20 and 10-50mA) signals, multi-turn trim pots are provided for Min and Max.

AC Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . 115 or 208 – 230V AC, 50/60 Hz (1)
Signal Input Voltage (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 – 25, 0 – 120, 0 – 550V DC
Signal Input Current (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 – 5, 4 – 20, 10 – 50mA (3)
Maximum Output Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Volts
Maximum Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10mA
Range of “MIN” Trimpot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ± 3 Volts
Range of “MAX” Trimpot . . . . . . . . . . 0 to 2 times the input voltage with maximum of 10 Volts
Linearity (4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ± 0.1%
Temperature Drift (4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 mV per ºC
Temperature Operating Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 – 50 ºC
