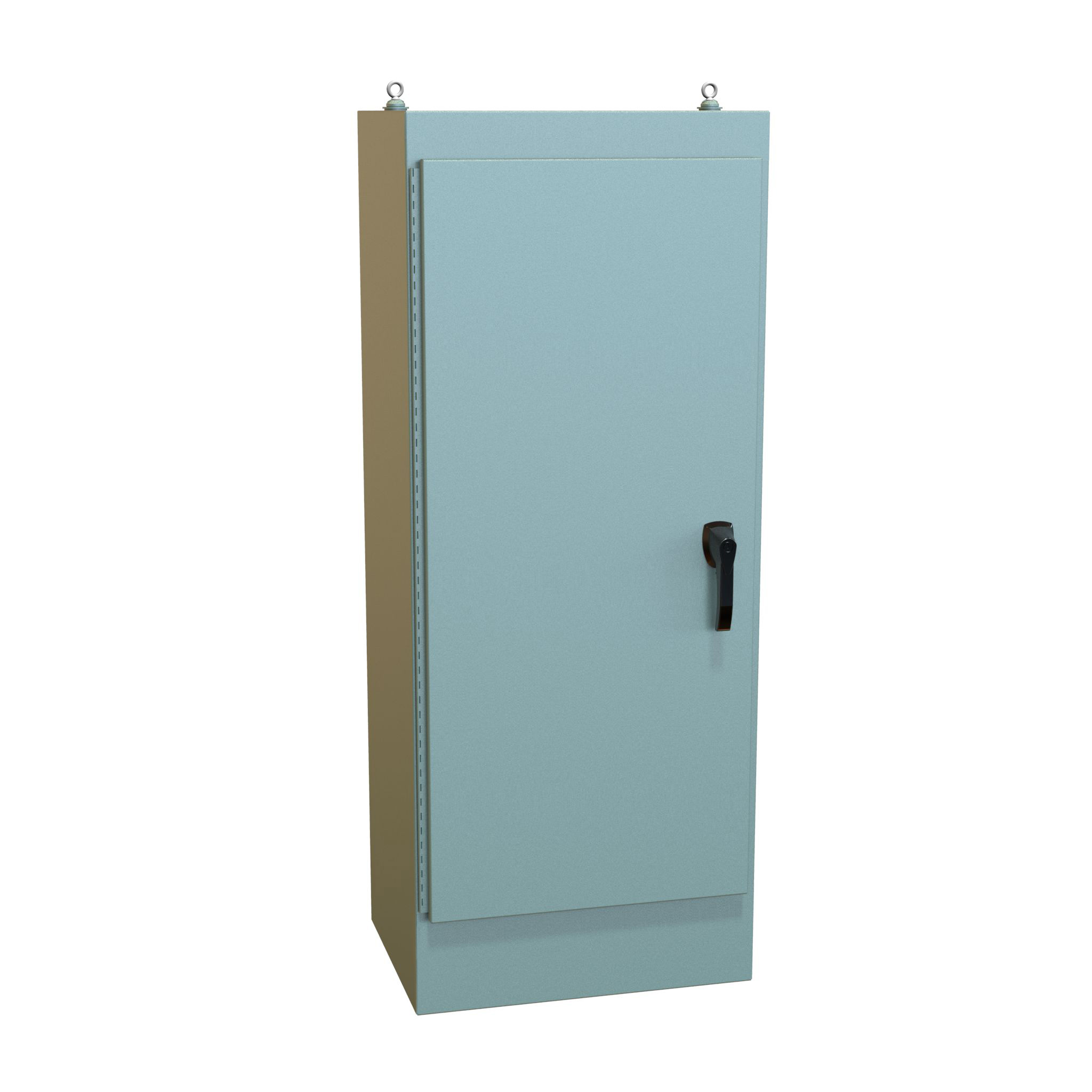

HAMMOND, 1418TW18, N12 FREE STANDING ENCLOSURE – 60″ X 24″ X 18″ – STEEL/GRAY

HAMMOND, 1418TW18, N12 FREE STANDING ENCLOSURE – 60″ X 24″ X 18″ – STEEL/GRAY

Application

• Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
• Provides a degree of protection from falling dirt, dust, oil and water.
• Available with front access only or both front and rear access.
• A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements.

Standards

• UL 508A Type 12
• CSA Type 12
• Complies with
  • NEMA Type 12
  • IEC 60529, IP54

Construction

• Formed 12 gauge steel.
• Smooth, continuously welded seams without knockouts, cutouts or holes.
• Lifting eyes provide for easy enclosure handling.
• Doors are supported with heavy gauge continuous hinges.
• Doors are secured with a three point latch and operated with a key locking automotive type handle.
• Latch rods are equipped with rollers for easier door closing.
• Oil resistant gaskets are permanently secured .
• Provision for light kit mounting.
• Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails.
• A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
• A literature pocket is provided for the inside of the door (Two pockets are provided for dual access units).

Finish

• Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 gray powder coating.
• Optional inner panels, rails, frames and supports are available in white powder coating.
